How to Connect Retro Gaming Consoles to Modern 4K TVs in 2026
Introduction
You found your old PlayStation, Nintendo 64, SEGA console or GameCube, connected the cables—and discovered your new 4K television does not have the correct input.
This is one of the most common problems retro gamers face in 2026.
Most classic consoles were designed for CRT televisions using analogue connections such as Composite, S-Video, RGB SCART or Component video. Modern 4K televisions, meanwhile, are increasingly built around HDMI.
The good news is that you usually do not need to replace your original console. With the correct cable, converter or scaler, classic hardware can work perfectly well with a modern television.
Step 1: Identify Your Console's Video Output
Before buying an adapter, determine what signal your console produces.
Common examples include:
- PlayStation 1: Composite, S-Video and RGB depending on cable/region
- PlayStation 2: Composite, Component and RGB
- Nintendo 64: Composite and S-Video depending on model/region
- Nintendo GameCube: Composite, S-Video or Component depending on model and region
- Nintendo Wii: Composite and Component
- SEGA Mega Drive/Genesis: Composite and RGB depending on model
- Super Nintendo/Super Famicom: Composite, S-Video or RGB depending on model and region
Exact compatibility can vary between console revisions and regional versions, so identifying your system before ordering cables is important.
Step 2: Check the Inputs on Your 4K TV
Look at the rear or side of your television.
If it still includes Composite or Component inputs, you may be able to connect certain retro consoles directly.
However, many newer televisions primarily provide HDMI connections. In this situation, you will need to convert the console's original video signal into HDMI.
Do not assume that simply changing the connector automatically improves picture quality. Signal conversion and image scaling are two different things.

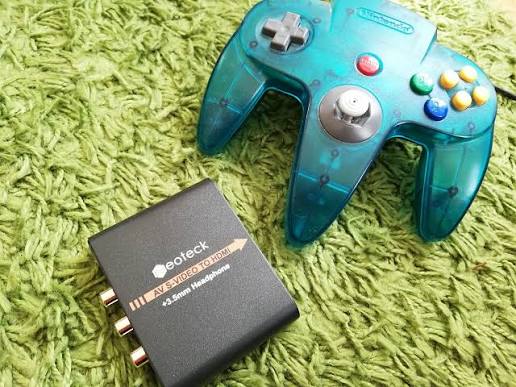

Option 1: Basic AV-to-HDMI Converter
For casual retro gaming, a basic analogue-to-HDMI converter can be the easiest solution.
The setup typically looks like this:
Retro Console → Original AV Cable → HDMI Converter → HDMI Cable → 4K TV
These converters are convenient because they allow consoles with Composite AV outputs to connect to televisions that only have HDMI.
The disadvantage is image quality. Basic converters may produce a softer picture, incorrect scaling or additional processing delay.
They are best suited to players who simply want an inexpensive and convenient way to get their original console running.
Option 2: Console-Specific HDMI Cable or Adapter
Some retro systems can use HDMI adapters designed specifically for that console.
The connection becomes:
Retro Console → HDMI Adapter/Cable → 4K TV
This keeps the setup cleaner and can be particularly convenient when you regularly use only one or two retro consoles.
However, quality varies considerably between adapters. An HDMI connector alone does not guarantee excellent scaling or low latency.
Option 3: Dedicated Retro Gaming Scaler
For collectors and enthusiasts, a dedicated video scaler is generally the better solution.
Older consoles commonly output resolutions such as 240p and 480i, which were designed around CRT televisions rather than modern flat panels. A retro gaming scaler processes these older signals and converts them into a format modern displays handle more effectively.
A typical setup is:
Retro Console → High-Quality Video Cable → Scaler → HDMI → 4K TV
A good scaler can help produce:
- Sharper pixel graphics
- Better handling of old resolutions
- Correct aspect ratios
- Cleaner analogue-to-digital conversion
- Reduced unnecessary television processing
This is particularly useful if you own multiple systems and want one high-quality setup.
Turn On Game Mode
Once your console is connected, check your television's picture settings and enable Game Mode where available.
Modern TVs perform significant image processing. While this can improve movies and television programmes, extra processing can delay the image when playing games.
Game Mode is specifically designed to reduce this processing and lower input latency.
This matters especially for games requiring precise timing, including platformers, fighting games and rhythm games.
Keep the Original 4:3 Aspect Ratio
Many retro games were designed for a 4:3 television screen.
If your 4K television automatically stretches the picture across its 16:9 display, characters and environments can appear unusually wide.
Check your TV or scaler settings for options such as:
- Original
- 4:3
- Aspect Ratio
- Screen Fit
Using the intended aspect ratio usually produces a more authentic appearance.
Composite vs Component vs RGB
Not all analogue connections provide the same image quality.
Composite video combines video information into a single signal and is usually the easiest connection to find.
S-Video separates portions of the image signal and can provide a cleaner picture on compatible systems.
Component video provides significantly better image separation and is especially useful with consoles such as the PlayStation 2 and Nintendo Wii.
RGB can produce excellent results from compatible retro consoles when paired with appropriate cables and conversion equipment.
For collectors seeking better image quality, starting with the strongest native signal supported by the console is usually preferable to converting a weak signal later.
Best Games to Test Your 4K Retro Setup
After connecting your console, try games with sharp graphics, fast movement or responsive controls.
Great examples include:
- Super Mario World – SNES/Super Famicom
- Sonic the Hedgehog – Mega Drive/Genesis
- Tekken 3 – PlayStation
- Gran Turismo 4 – PlayStation 2
- Super Mario 64 – Nintendo 64
- Mario Kart: Double Dash!! – GameCube
- Mario Kart Wii – Nintendo Wii
These types of games can make it easier to notice incorrect aspect ratios, poor scaling or excessive input delay.
Common Mistakes to Avoid
One common mistake is purchasing the cheapest HDMI adapter without checking what signal it supports.
Other mistakes include using the wrong regional cable, stretching 4:3 games to widescreen, leaving heavy motion processing enabled, assuming every model of a console has identical outputs, or buying Component/RGB cables for hardware that cannot output the required signal.
Always identify your exact console model first.
Connecting Japanese Retro Consoles in the UAE
Collectors in the UAE often encounter Japanese consoles such as the Super Famicom, Japanese PlayStation systems, SEGA Saturn, PC Engine and other NTSC-J hardware.
Video compatibility is only one consideration.
You should also verify the system's power requirements before connecting imported hardware. Never assume that a Japanese console should be plugged directly into a UAE electrical outlet without checking its power supply requirements.
Using the correct power solution is just as important as choosing the correct video cable.
What You Can Find at Retros.ae
Retros.ae specializes in original retro gaming consoles, games and accessories for collectors and players across Dubai and the UAE.
Whether you are rebuilding a PlayStation setup, connecting an old Nintendo console or exploring Japanese gaming hardware, Retros.ae is focused specifically on classic gaming.
Current stock varies because retro products are increasingly collectible, so check Retros.ae for available consoles, games and compatible accessories.
Final Verdict
Connecting an original retro console to a modern 4K television in 2026 is absolutely possible.
For a simple setup, an AV-to-HDMI solution may be sufficient. Console-specific HDMI adapters offer additional convenience, while enthusiasts seeking better picture quality should consider dedicated retro gaming scaling solutions.
Whatever method you choose, remember the key steps: identify the console's native output, use the best compatible signal, maintain the correct aspect ratio, and enable Game Mode on your television.
Your PS1, PS2, Nintendo 64, GameCube, Wii, SEGA and other classic systems do not have to remain disconnected simply because television technology has changed.
